Features:

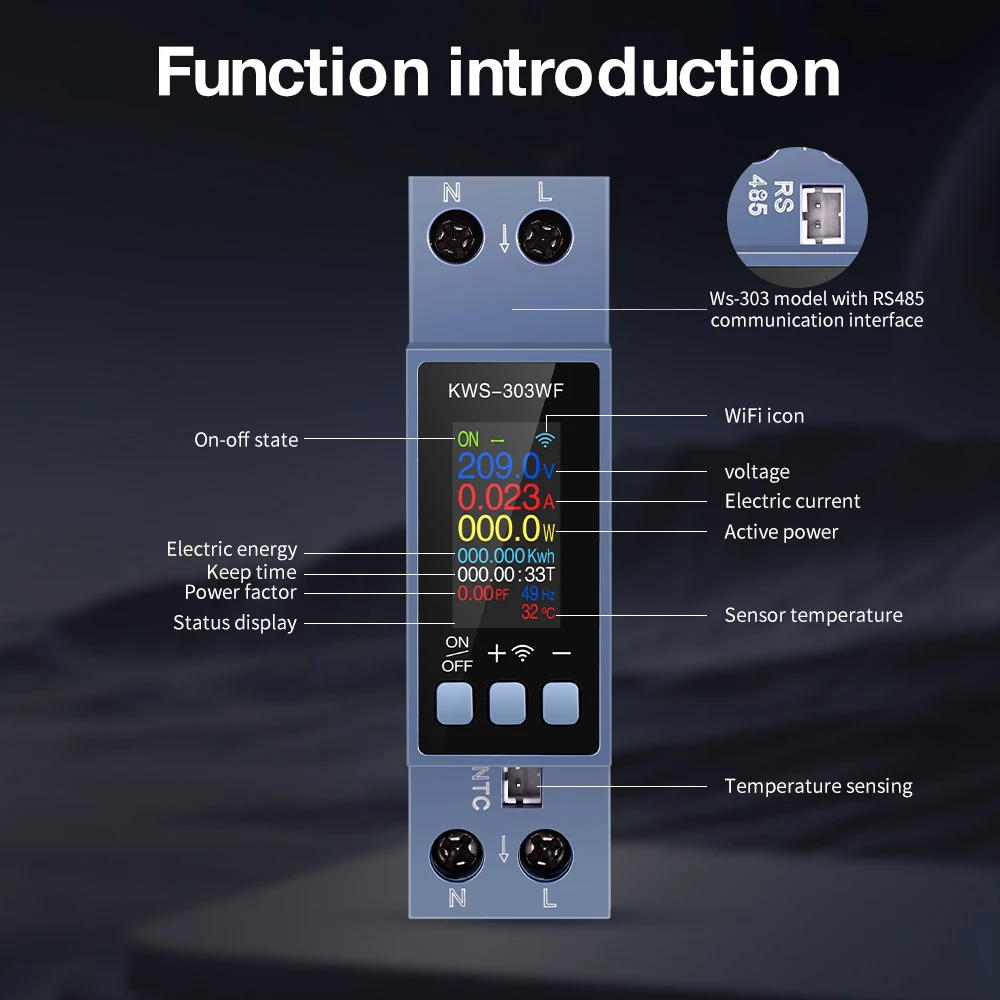

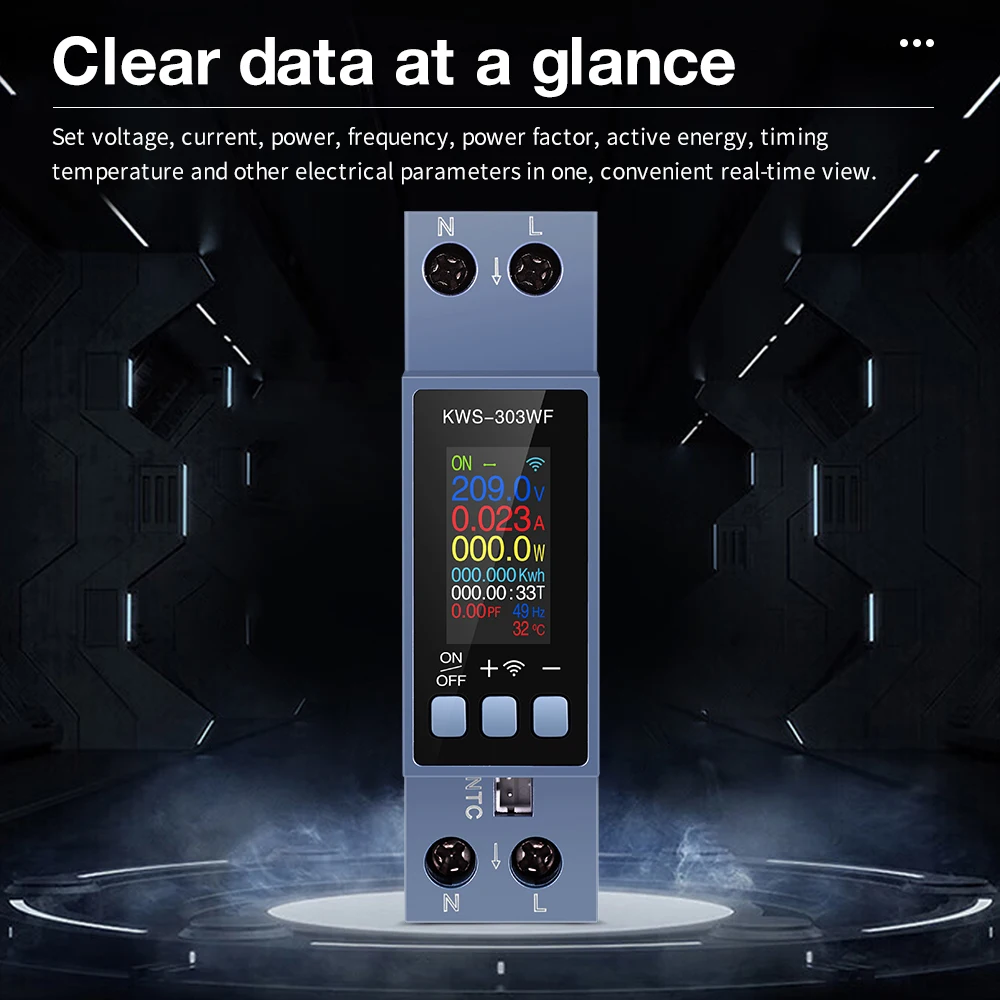

1.8-in-1 digital display: Voltage, current, power, frequency, power factor, active energy, timing, and other electrical parameters are displayed on the same screen, making it easy to see and view in real-time.

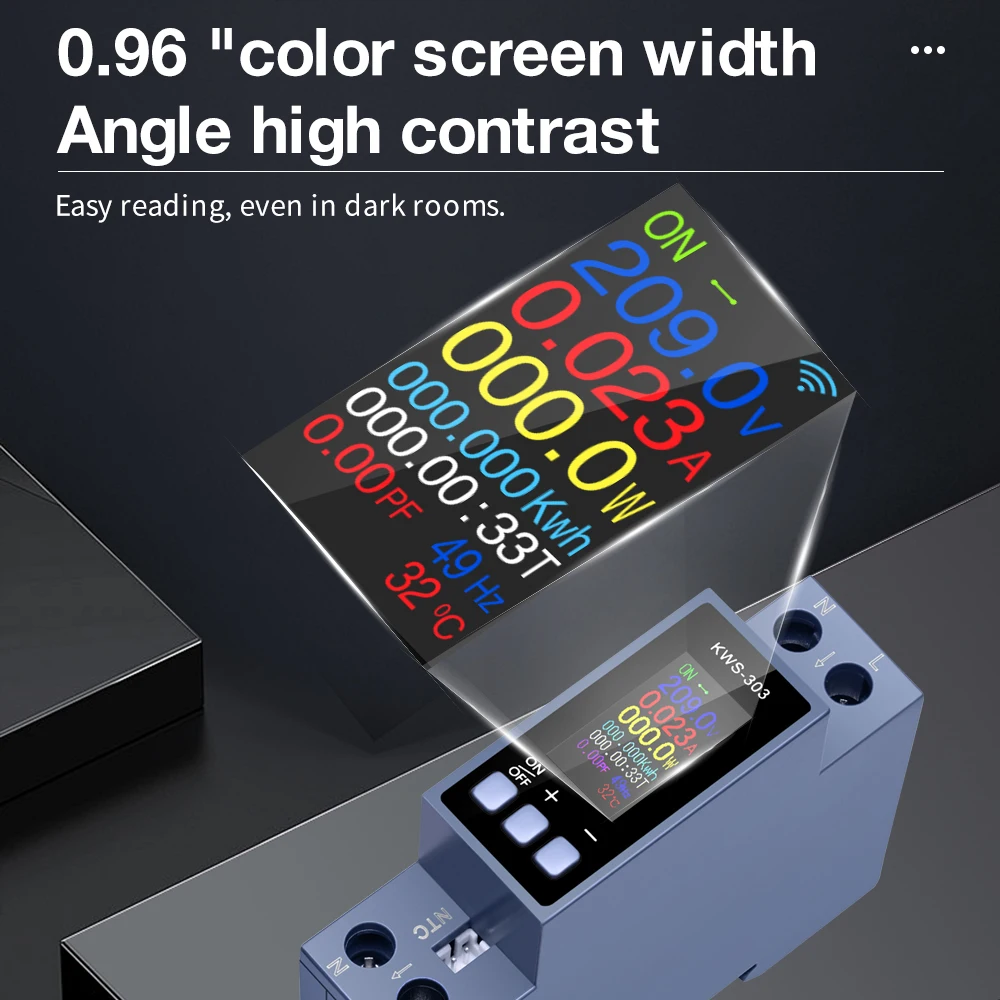

2. High definition TFT color screen: The 0.96-inch high-definition TFT color screen has a wide viewing angle and high contrast, making it easy to read even in dim indoor environments.

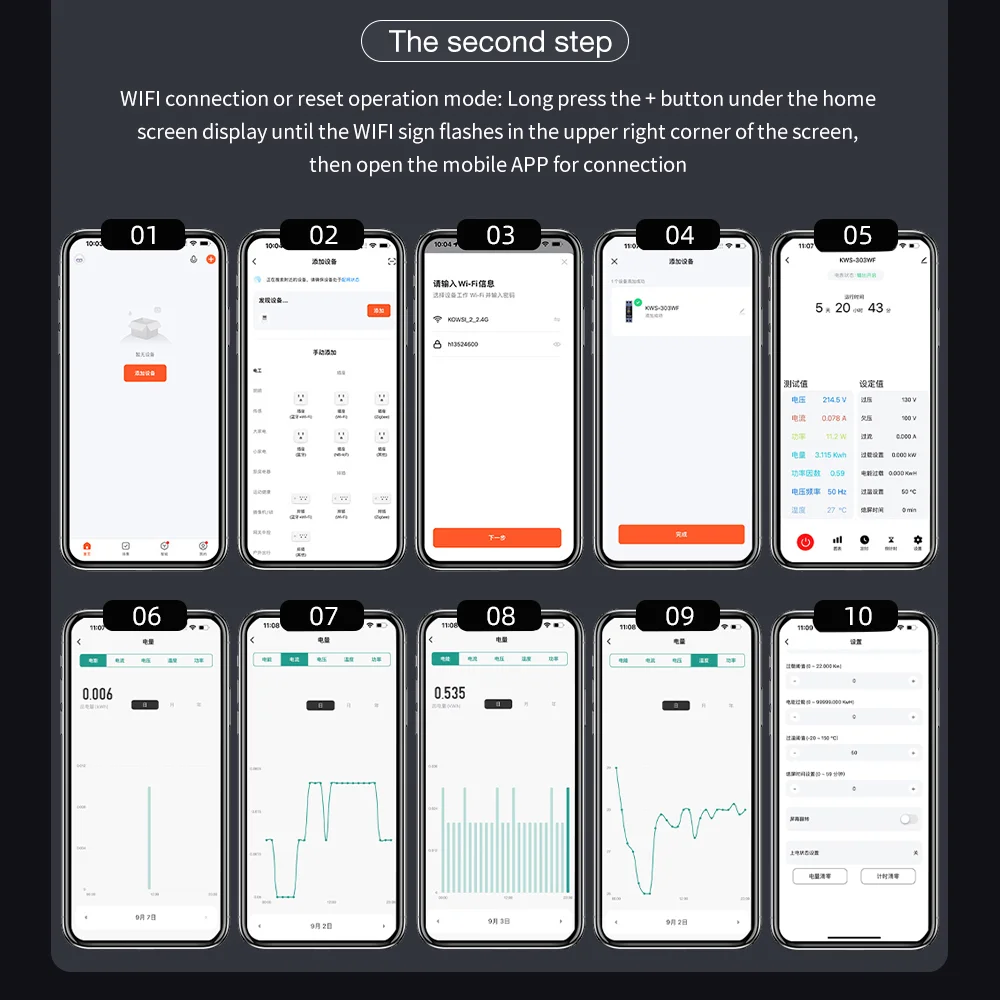

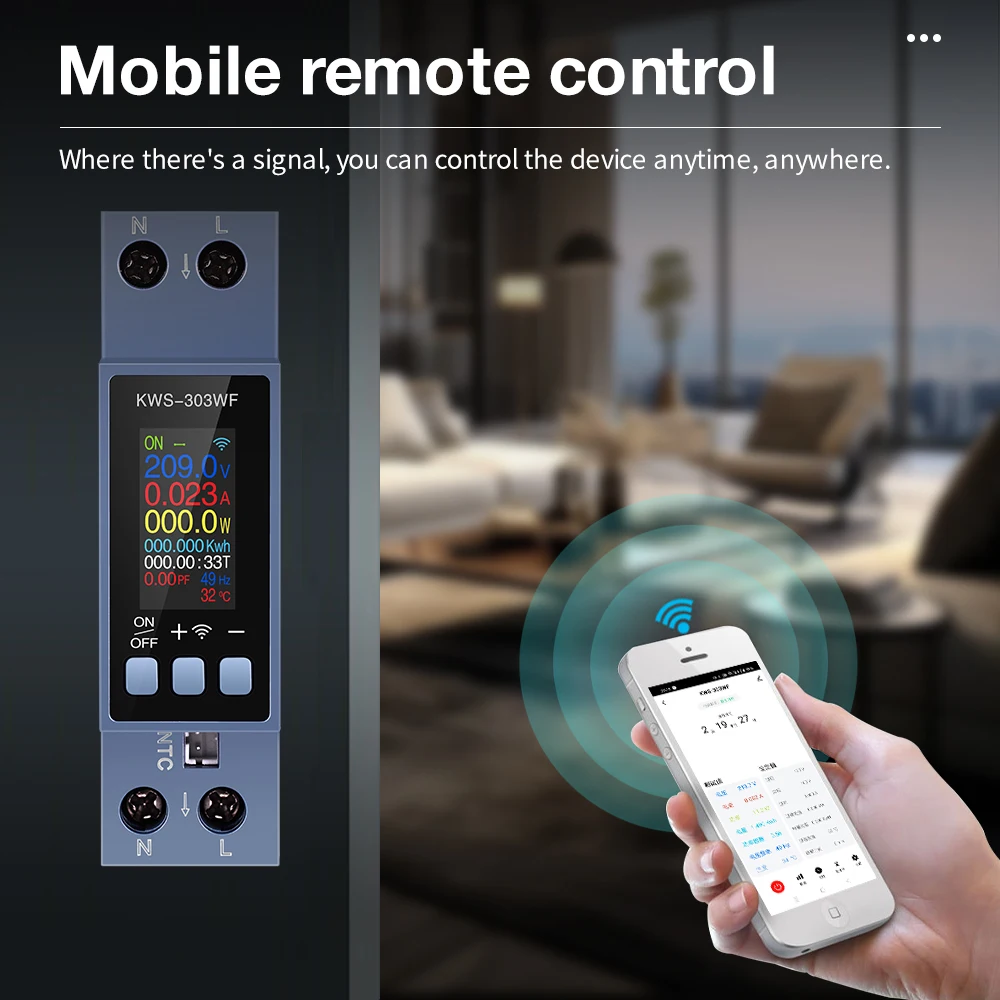

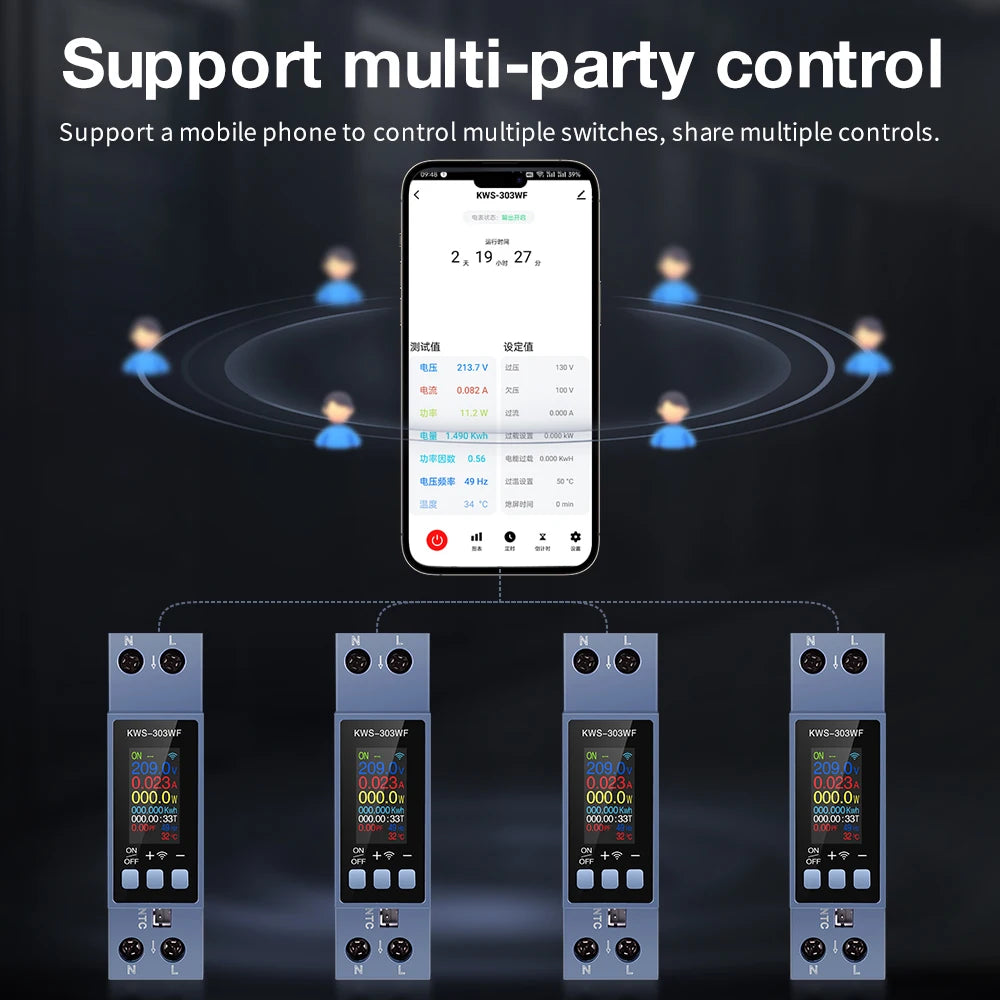

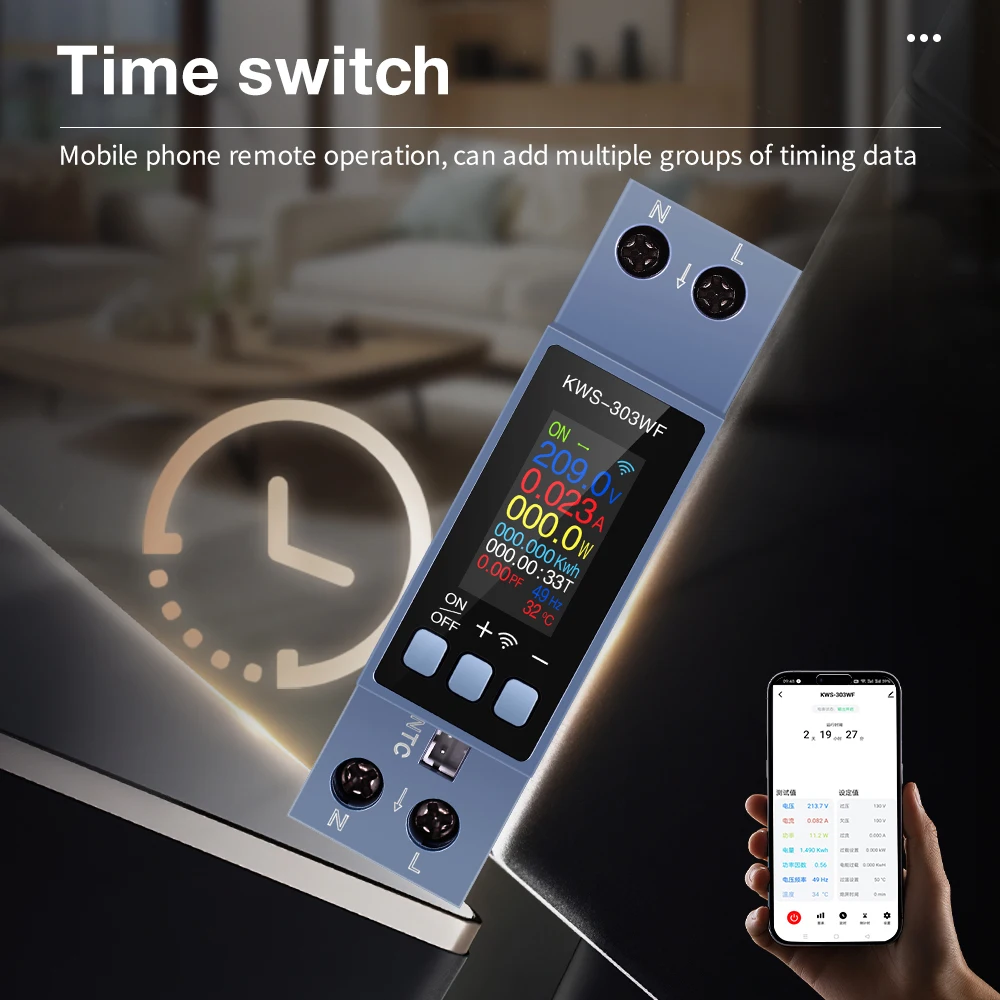

3. Mobile remote control: WiFi networking, cloud remote. A mobile phone is a remote control that allows you to control devices anytime and anywhere with a signal. At the same time, multiple sets of timed data can be added, and power on can be set to save time and effort.

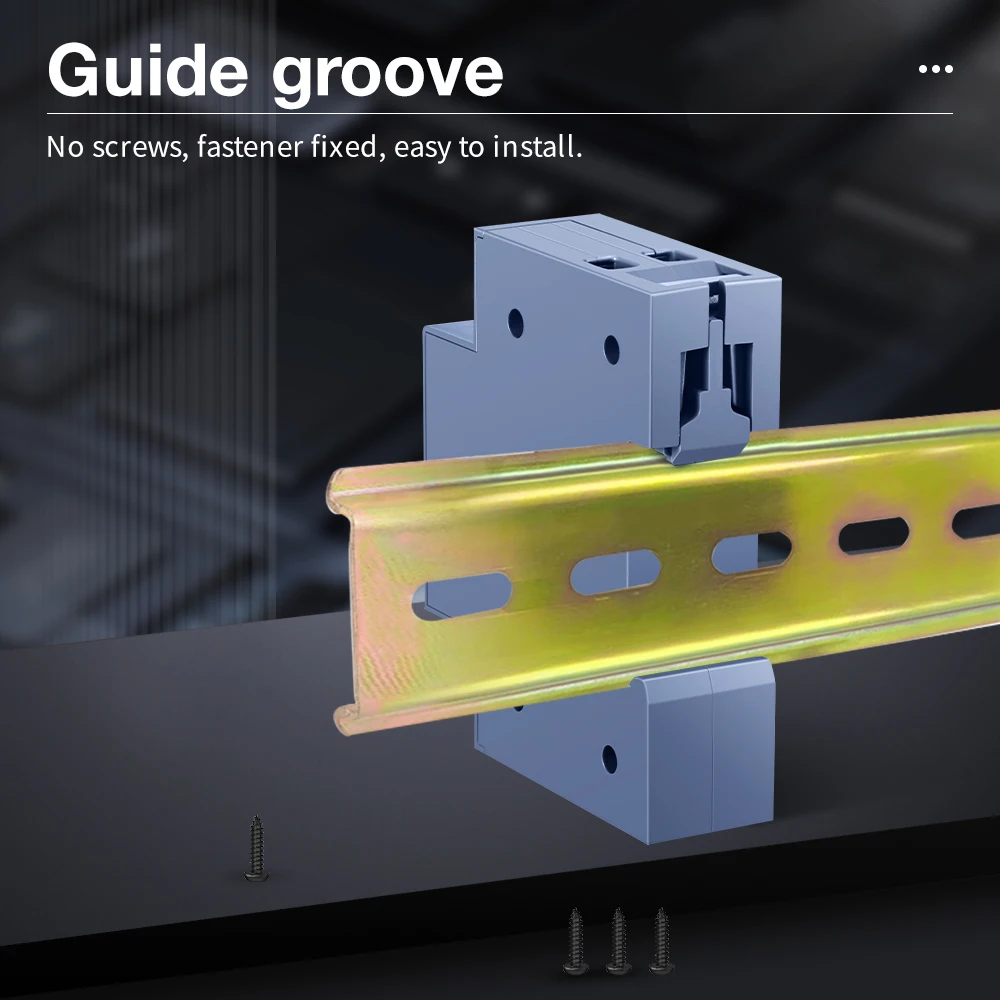

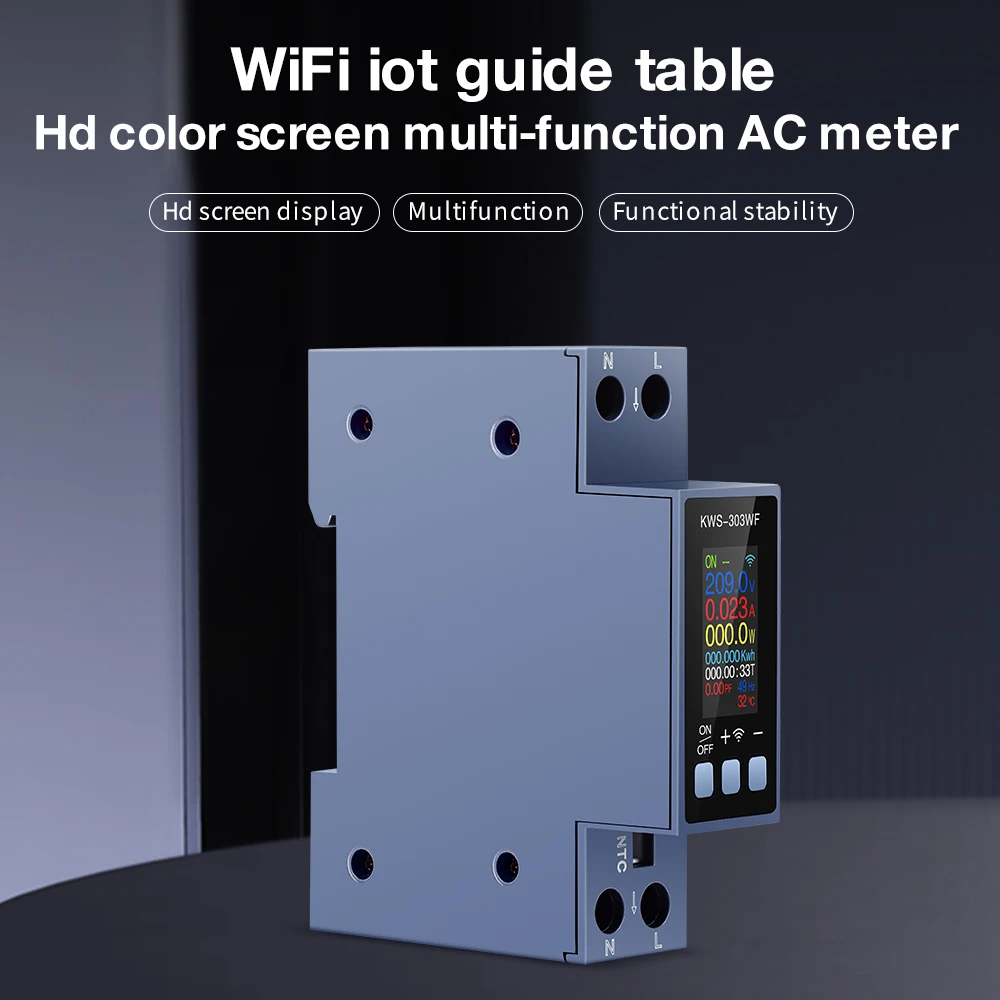

4. Standard guide rail slot: The product is installed using standard guide rails, without the need for screws or fasteners, making installation convenient and easy.

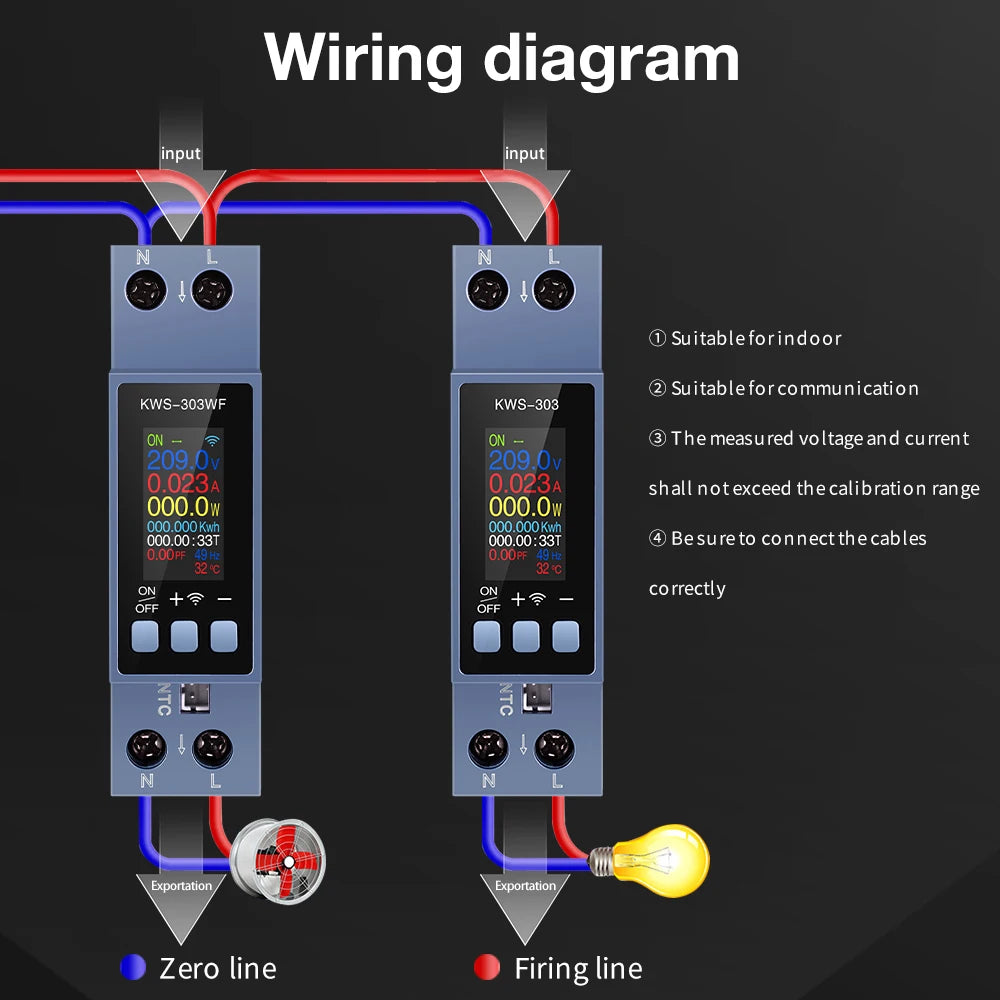

5. Portable and easy to install: The product is compact in size, convenient to carry, and can also be used in distribution boxes. The wiring is also very simple, and it can be easily handled without the need for an electrician.

6.Wide range of applications: widely used in high and low power distribution cabinets, factories, warehouses, companies, shopping malls, home and other fields.

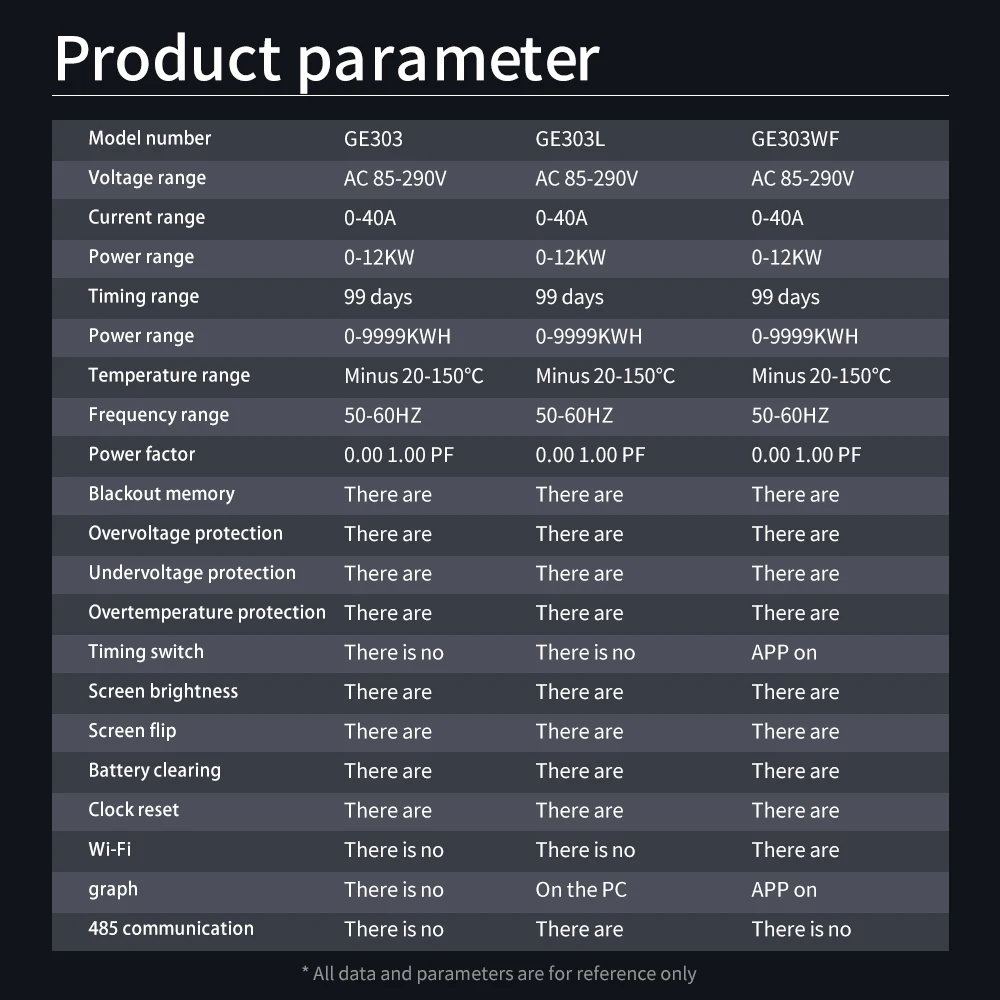

Parameters:

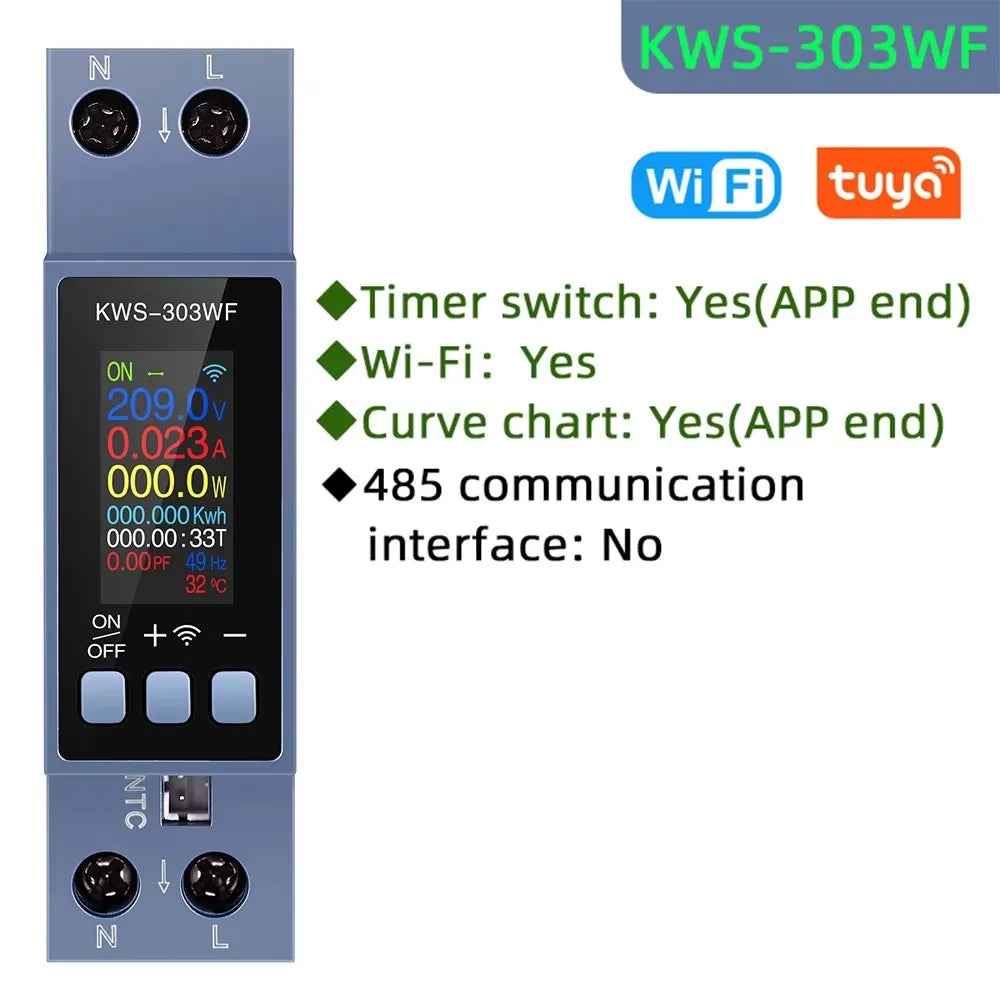

Product Name: 8 IN 1 Rail Voltage and Current Meter

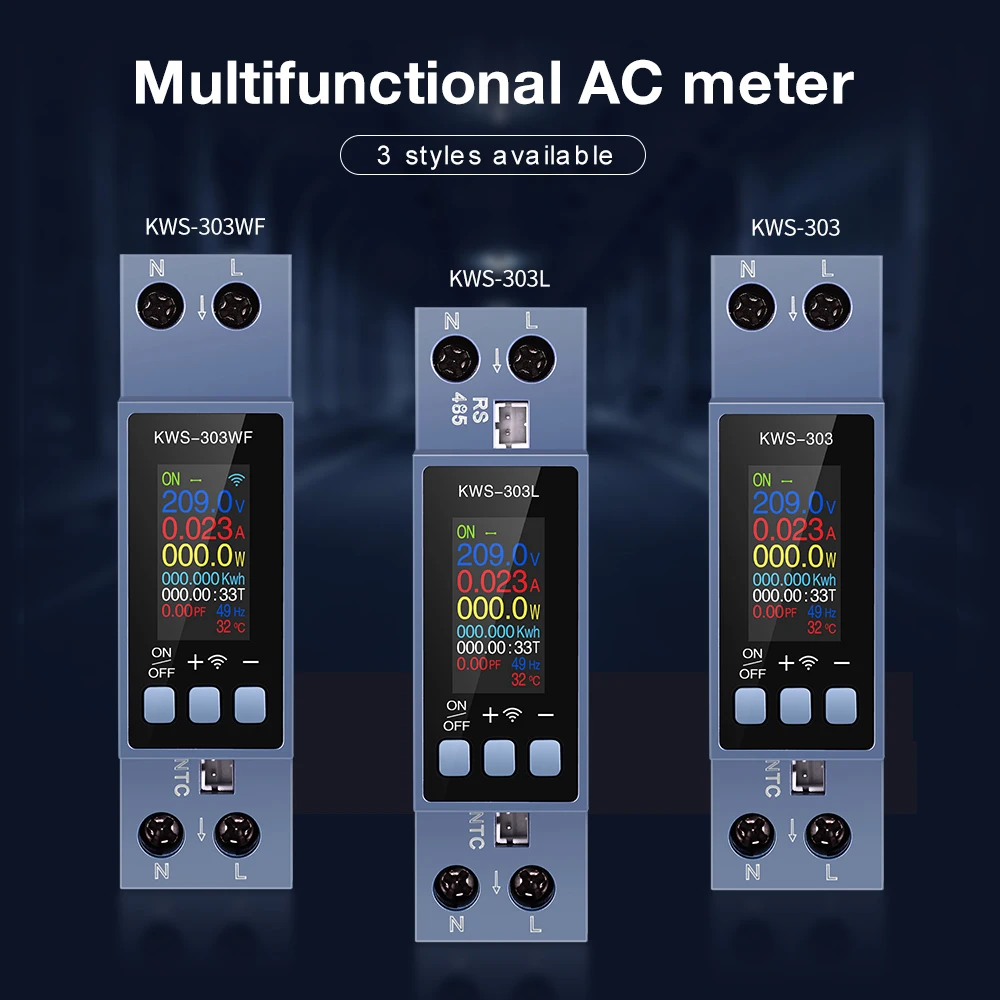

Model: KWS-303WF/KWS-303L/KWS-303 (Optional)

Voltage range: AC100-290V

Current range: 0-40A

Power range: 0-12KW

Timing range: 99 days

Electric energy range: 0-9999KWH

Temperature range: -20~150 ° C

Frequency range: 50-60Hz

Power factor: 0.00-1.00PF

Power off memory: Yes

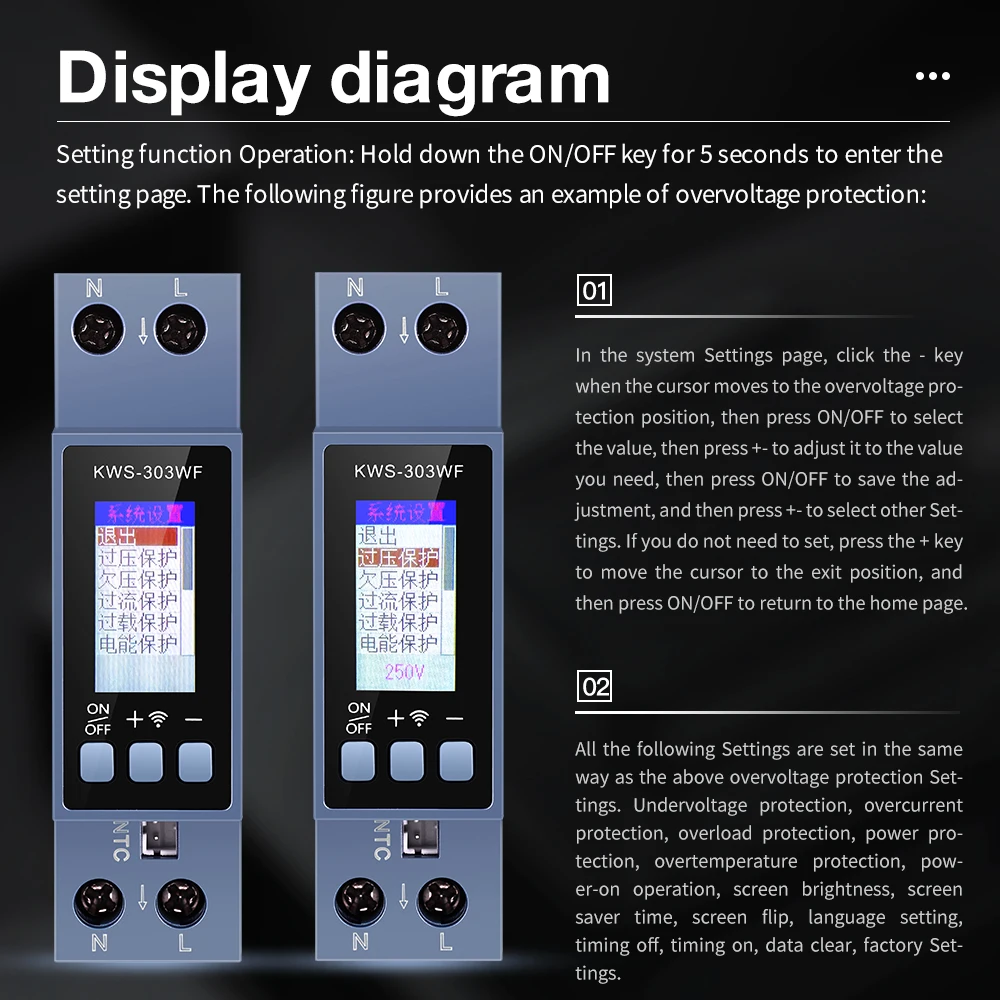

Overvoltage protection: Yes

Undervoltage protection: Yes

Timer switch: APP end (Only for model KWS-303WF)

Screen brightness: Yes

Screen Flip: Yes

Battery reset: Yes

Timer reset: Yes

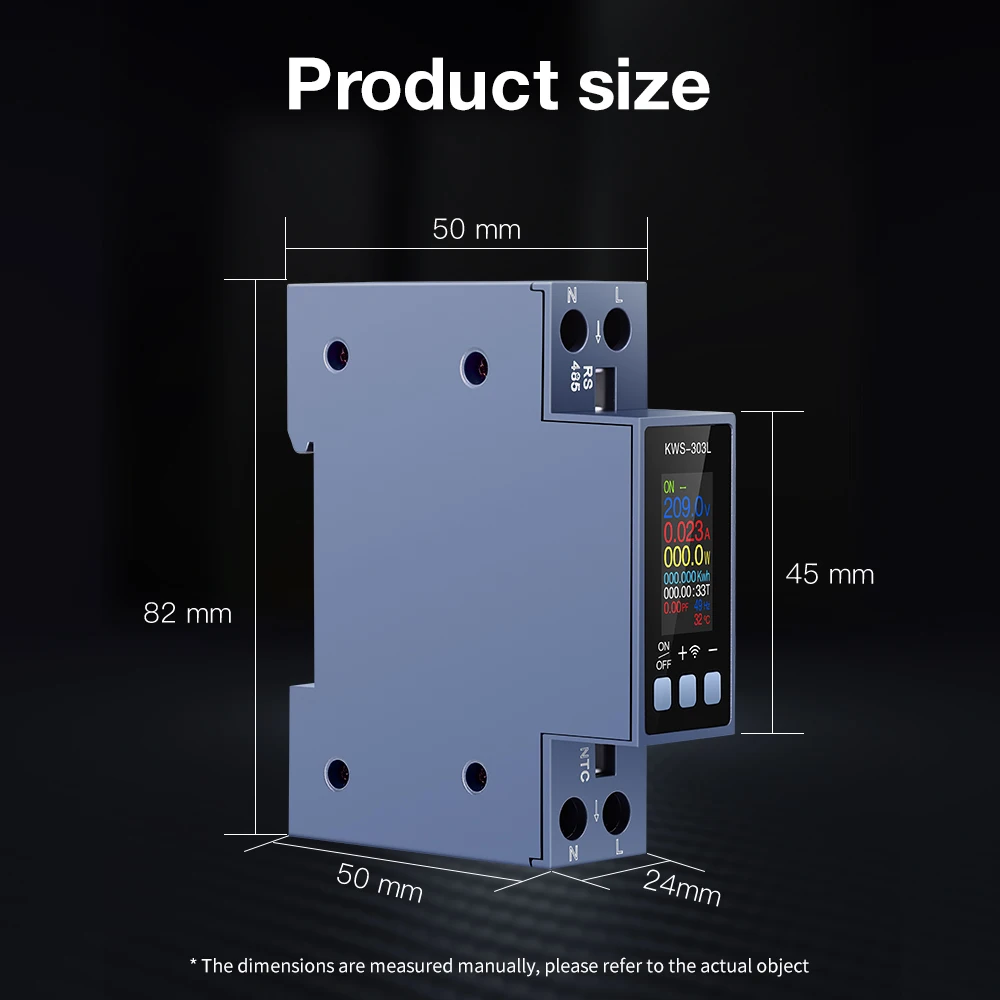

Product size: 8.2x5x2.4cm

Curve Chart: APP/PC (Only for model KWS-303WF/KWS-303L)

485 communication: Only for KWS-303L
