SPECIFICATIONS

Certification: CE

High-concerned chemical: None

Model Number: thermostat

Wattage: thermostat

semi_Choice: yes

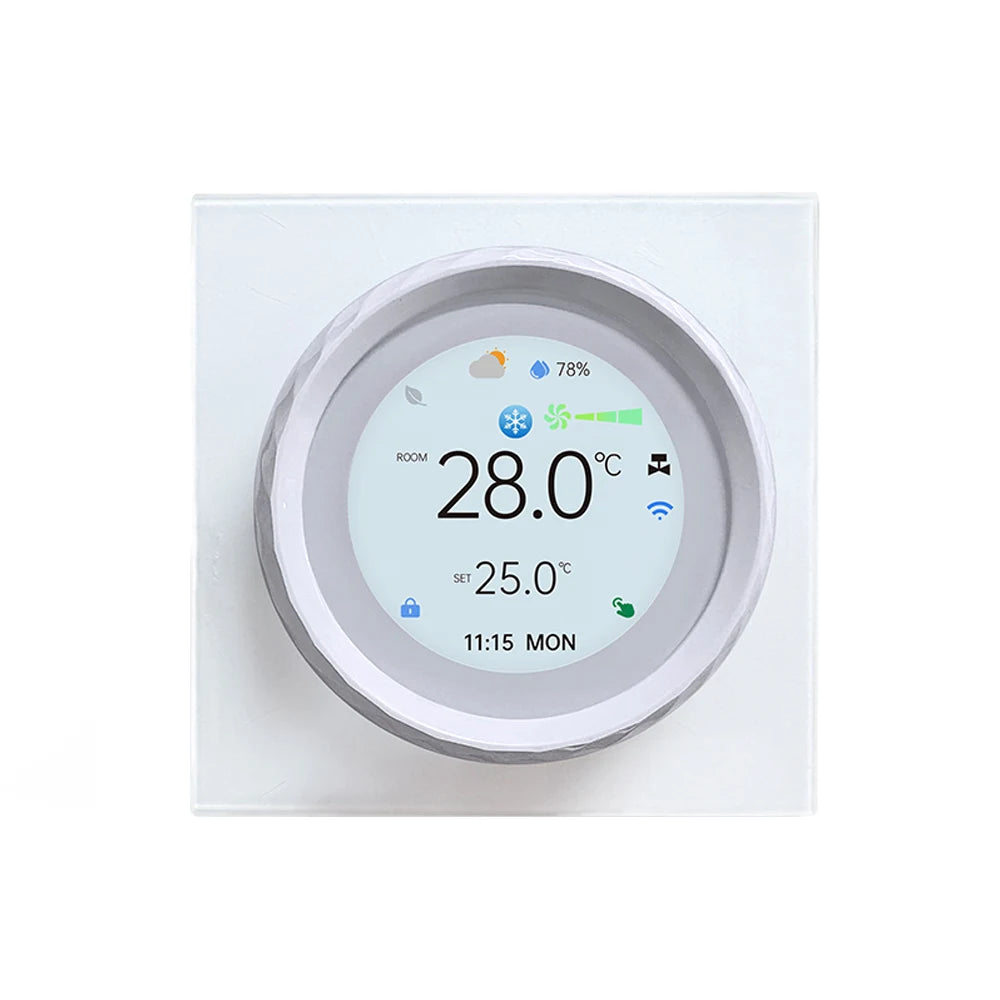

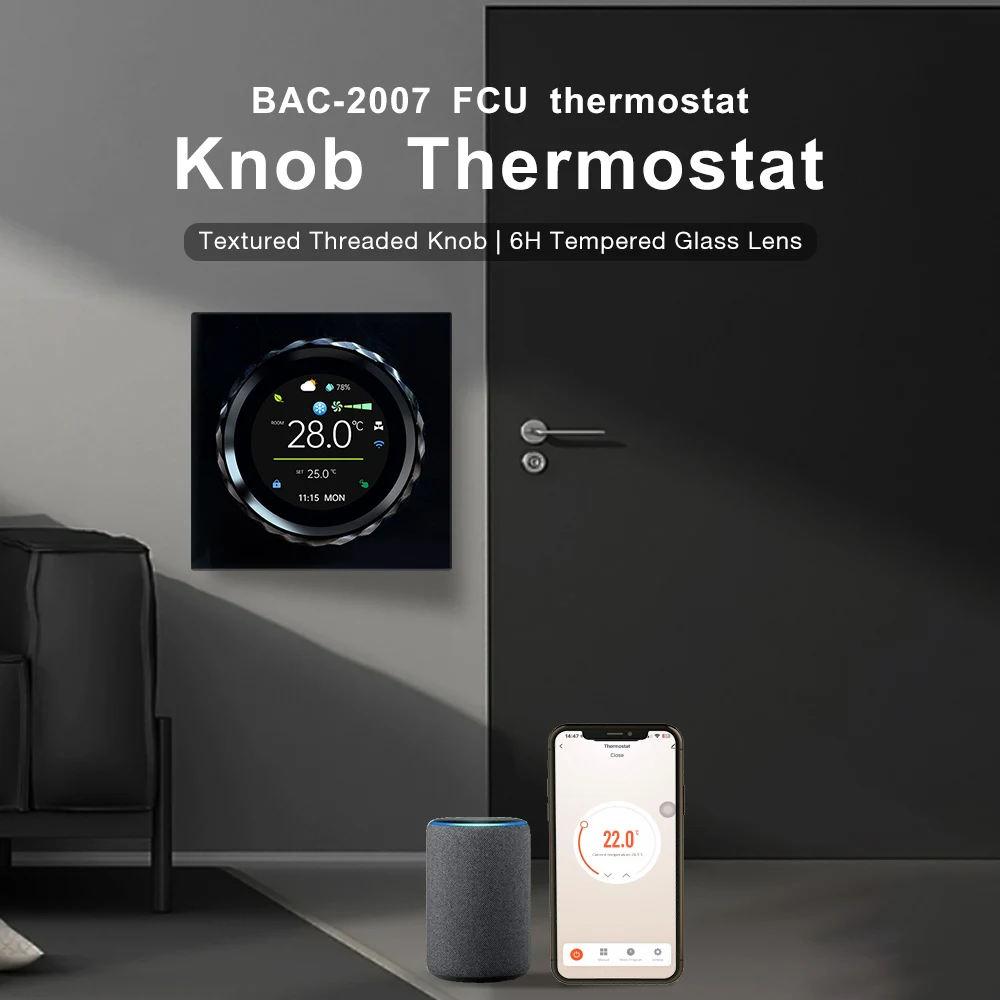

Tuya Smart Life WiFi Smart Knob Thermostat BAC-2007 Air-conditioner Temperature Controller for Air Conditioning Heating Cooling

BAC-2007series Modern Touch Screen RoomThermostats are designed to on/off control the fans and valves in air conditioner applications viacomparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.

Features:

*1.6 inch circularand 400*40p TFT；

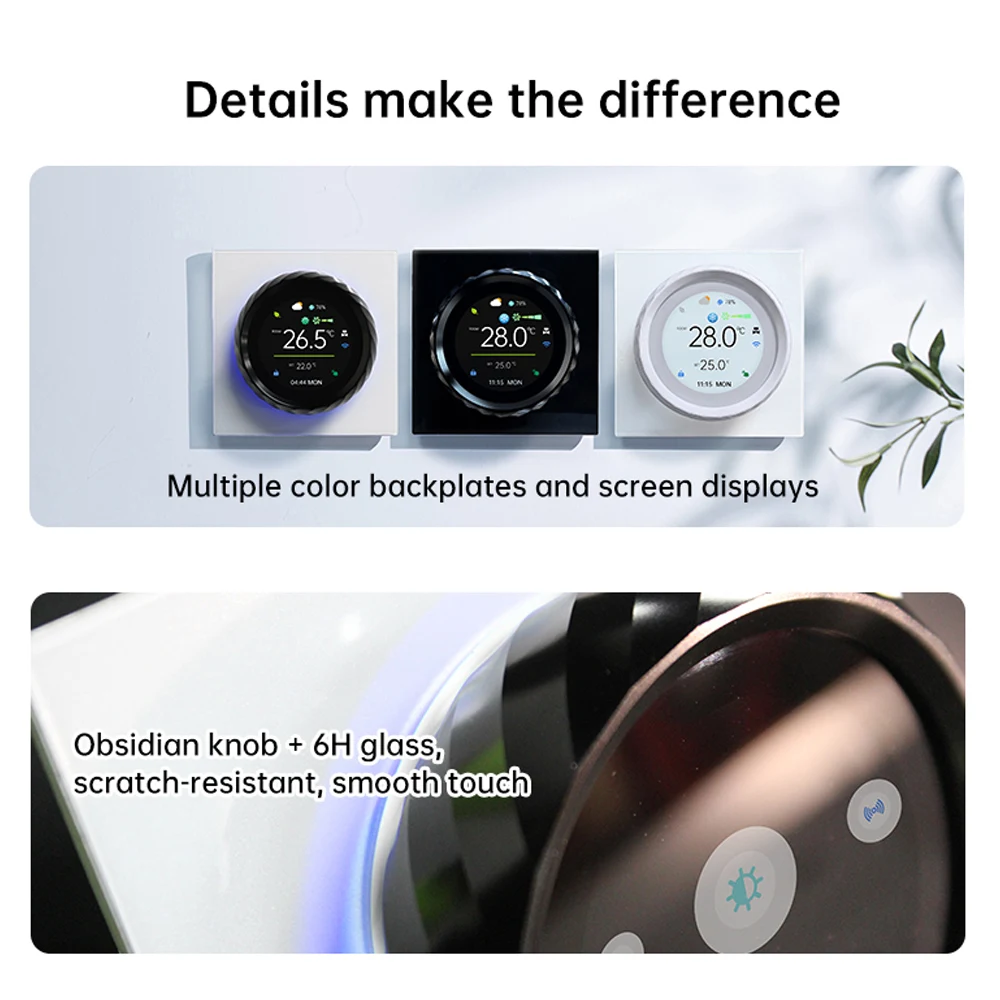

*Premium threaded side knob with an obsidian-like texture for a refined fingertip experience;

*Above 6H tempered glass keepsyour screen away from scratches;

*Agile push button gives you an excellent experience;

*Sevencolors ambientlight increase color to your life;

*Various back panel designs available to match dfferent home styles;

*Supports languageswiching betweenChinese,English,French,Italian, German, Russian,Spanish, and Portuguese.

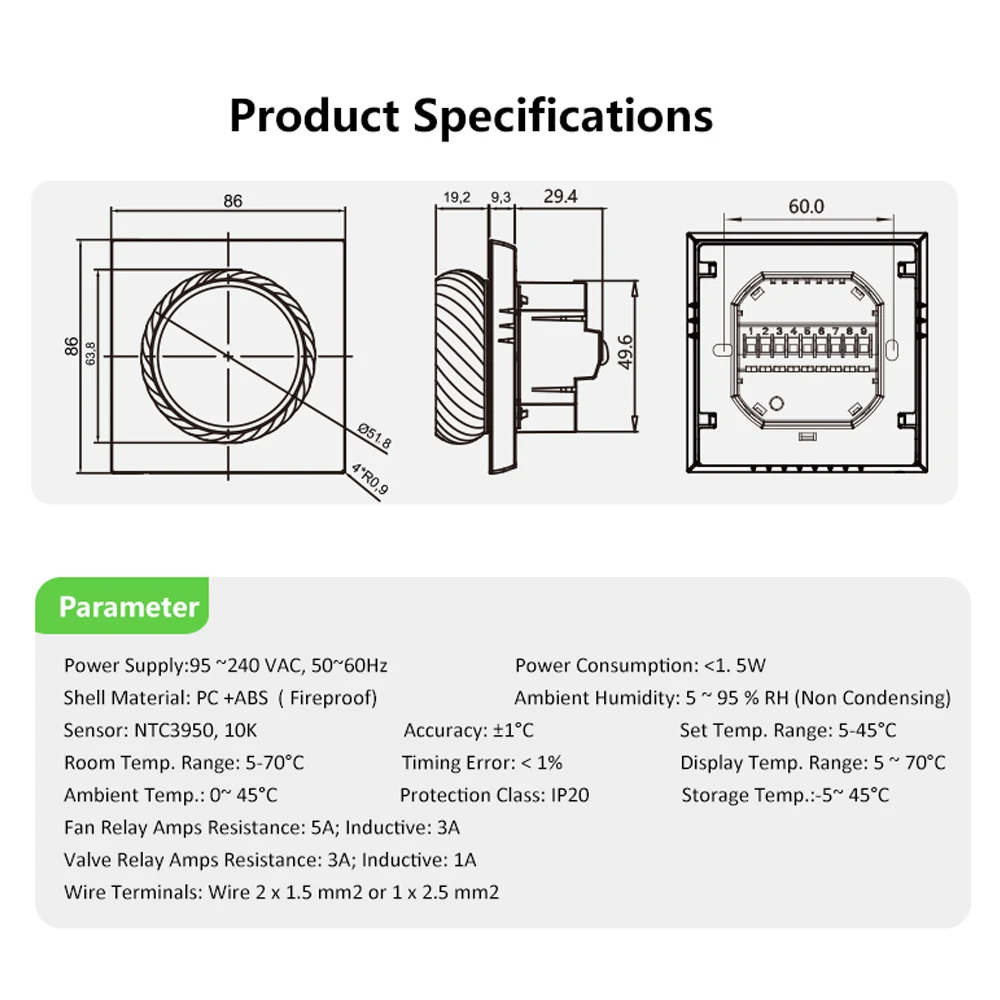

Specifications:

Power Supply: 95 ~240 VAC, 50/60Hz or 24V DC/AC,50/60Hz

Please check the information laser printed on the back of the thermostat

for the actual voltage.

Fan Relay Amps Resistance: 5A; Inductive: 3A

Valve Relay Amps Resistance: 3A; Inductive:1A

Sensor: NTC3950, 10K

Accuracy: ±1°C

Set Temp. Range: 5-45°C

Room Temp. Range: 5-70°C

Display Temp. Range: 5~70°C

Ambient Temp.: 0~45°C

Ambient Humidity: 5 - 95 % RH (Non Condensing)

Storage Temp:0~ 45°C

Power Consumption: <1. 5W

Timing Error:<1%

Shell Material: PC +ABS (Fireproof)

Installation Box: 86 *86mm National Standard/ 60 *60mm European Standard Junction Box

Wire Terminals: Wire 2x 1.5 mm2 or 1 x2.5 mm2

Protection Class: IP20
